ABL Equipment Furniture LAB

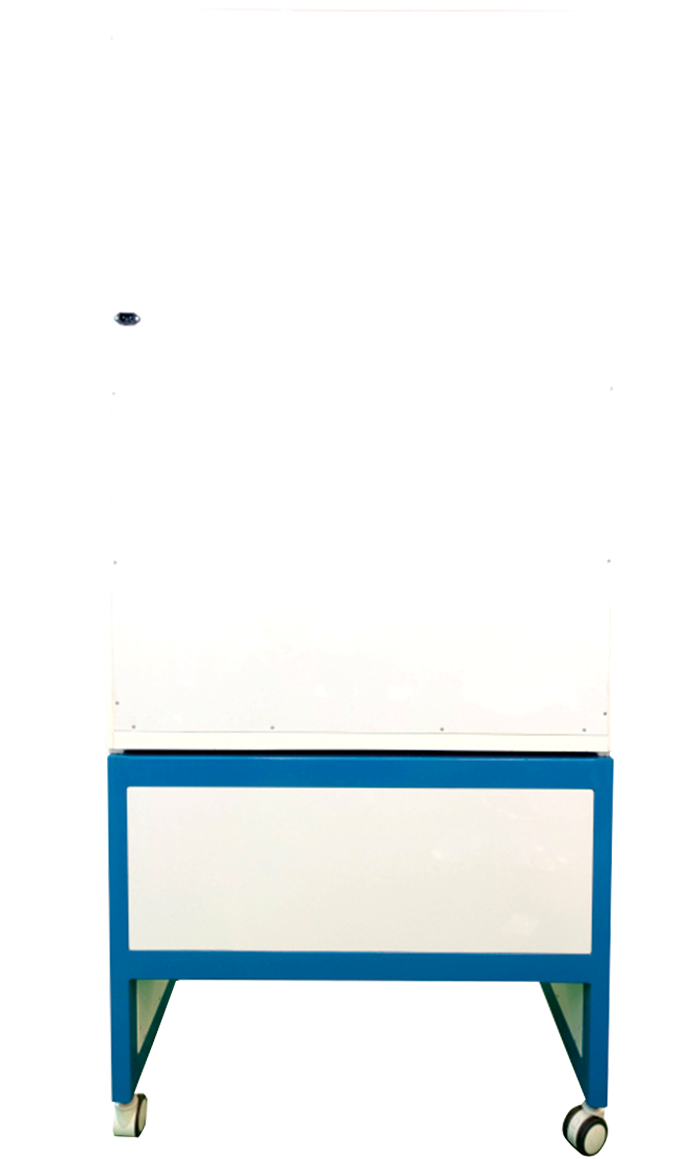

BIO SAFETY CABINET 90 CLASS II A2 FA

Class II A2 Fully Automated

---

Catalog Number : ABL-BSCAO90IIA2

---

Description

---

Biological Safety Cabinets (BSC)

ABL Biological Safety Cabinets (BSC) provide protection for personnel, product and environmental through the use of laminar air flow and HEPA/ULPA filtration to obtain optimum control over product quality while reducing potential exposure. It is design with ergonomic in mind, from top bench to control panel and give easy access to switches and airflow control. The bench top console is designed with the option of air being recirculated back into the laboratory environment or into a facility exhaust system through the duct work. ABL Biological Safety Cabinets are coated with a layer of microbial inhabitant growth, it is equipped with a standard UV lamp for decontamination, with optional UV Door which provides safety against UV light to the operator. High-efficient blower are used to reduce energy use, while compact design ensures larger workspace and lower noise.

Material	BBMin 18, Finishing HPL
Outside Dimension	900x750x1400 mm (PxLxT)
Inside Dimension	845x600x1350 mm (PxLxT)
Work Room	845x580x720 mm (PxLxT)
Work Bench	Stainless Steek SUS 316
Lighting	LED 8 Watt, 220 Volt AC 800 Lumens, Temperature Coll Day light, Corner 270°
Ultra Violet Light	20 watt, 220 Volt Life 8000 hrs
Front Control Panel	Switch on/off Blower,LED Light, UV Light
Hepa Filter	Efficiency of 99,99% @0,3 um pressure Drop @0,45m/s, ≤ 105 Pa Diagonal Dimension (± 1.0 mm)
Pre Filter	0 -0,80 m/s (Dimension: 340x320 mm)
Ducting	6 Inch
Blower	220 Volt 0.3 Amp
Sound Pressure Level	Low Noise ≤ 80dB
Power	330 VA, 220 Volt, 1 Pass
Front Opening	Tempered Glass , Acrylic Panel
