ABL Equipment Furniture LAB

FUME HOOD 120


Catalog Number : ABL-FH120
Description

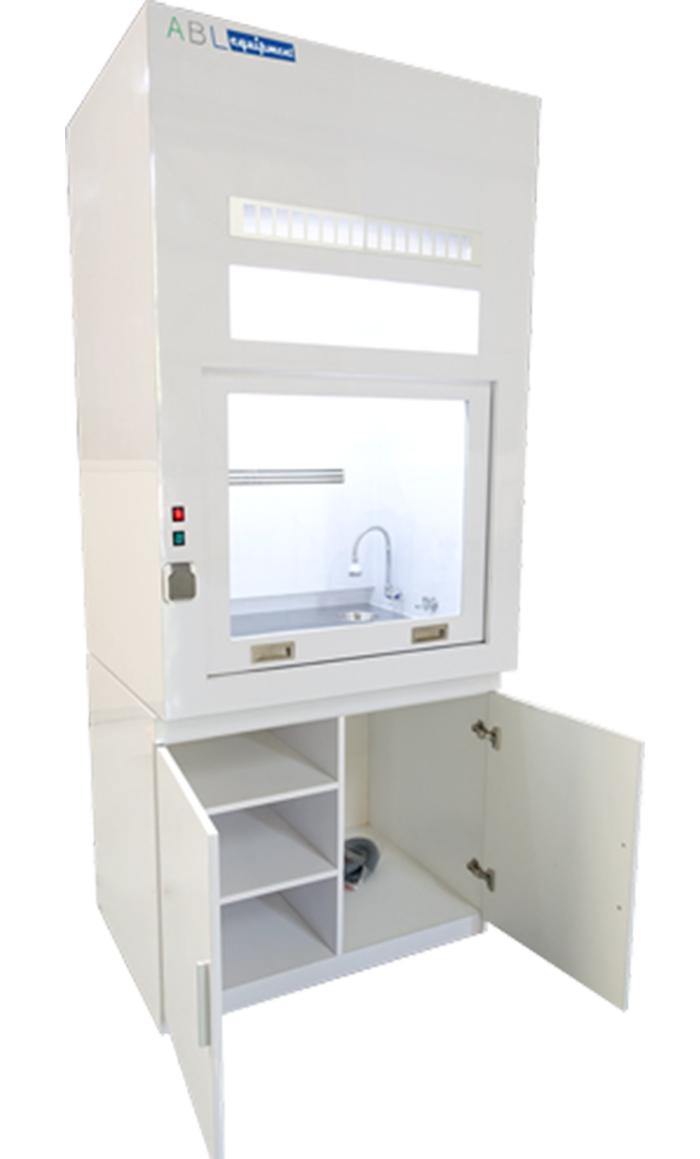

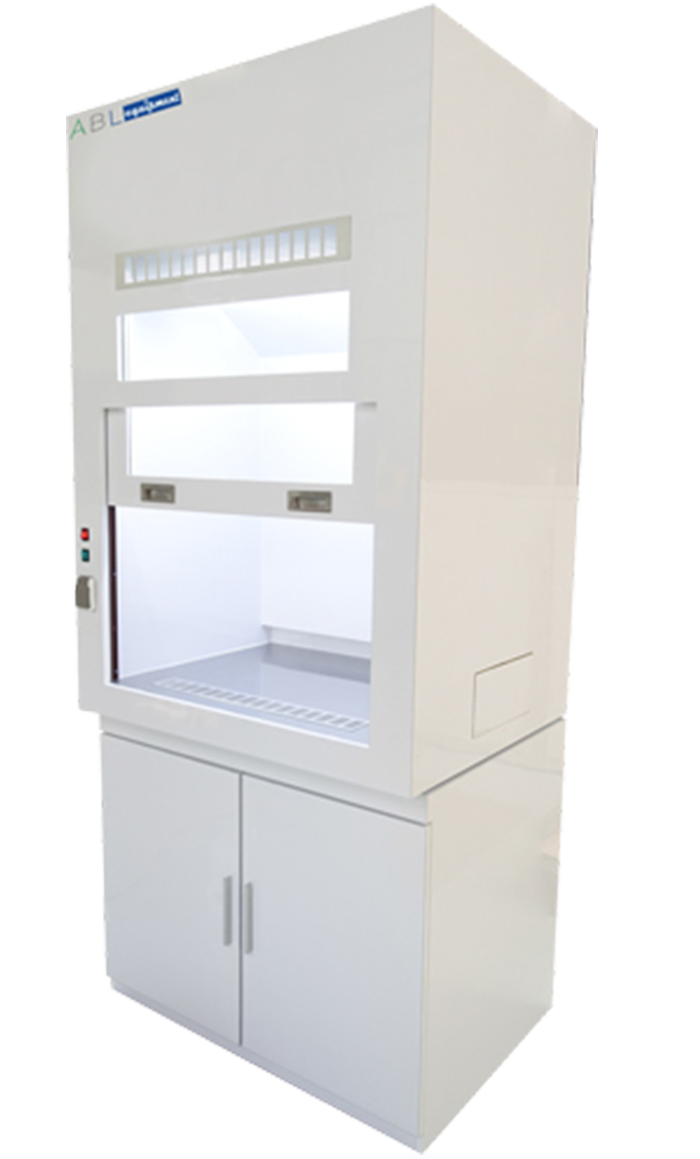

Fume Hood

Designed to limit exposure to hazardous or toxic fumes, vapors or dusts, ABL Fume Hoods, gives added user protection from inhalin toxic gases. with available sizes from compact, at 90mm in length, to the ultimate working space of 120mm in length, users have the option to customize thier Fume Hoode, through added options from premium control panel to cabinet layout. ABL Fume Hoods provide a variety of plug-ins from gas, water, electricity, to different size size of labolatory grade sink to accommodate the most demanding of work. ABL Fume Hoods are built with highly selective stainless steel that goes beyond the standard requirment of 304 grade, using 316 grade stainless steel for added du-rability and hardness. each ABL Fume Hood goes through stringent quality assurance lest to ensure smooth operation and have been tested for 36 hours for performance.

Wet Scrubber

Removing particles and / or gasses from the use of Biological Safety Cabinet and Fume Hoods, are essential in good desgin of ABL wet scrubber system, it operates by intoducing dirty flow of gas stream whic will then be neutralized by sprikled water through a series of highly concentrated media to eleminate elements and odor, while leaving clean air.

Material

BBMin 18, Finishing HPL

Outside Dimension

1200x750x1400 mm (PxLxT)

Work Room

1020x550x950 mm (PxLxT)

Work Bench

Stainless Steek SUS 316

Lighting

LED 13 Watt, 220 Volt AC 800 Lumens, Temperature Coll Day light, Corner 270°

Front Control Panel

Switch on/off(LED Light & Blower)

Blower

centrifugal,Acid proof,Impellers Sirroco, 220 Volt 0,50 HP, Capacity 30m3/m, ST Press, RPM 2850, Ducthing 8 Inch

Front Opening

Tempered Glass , Acrylic Panel

Catalog Number ABL-FH120
Product Name FUME HOOD 120
Brand ABL Equipment
Material Hardened Timber
Color White
Dimension 1200 X 750 X 2200
  • Certificate ISO 9001

  • Certificate ISO 13485

  • Certificate CPAKB

  • Certificate CDAKB
