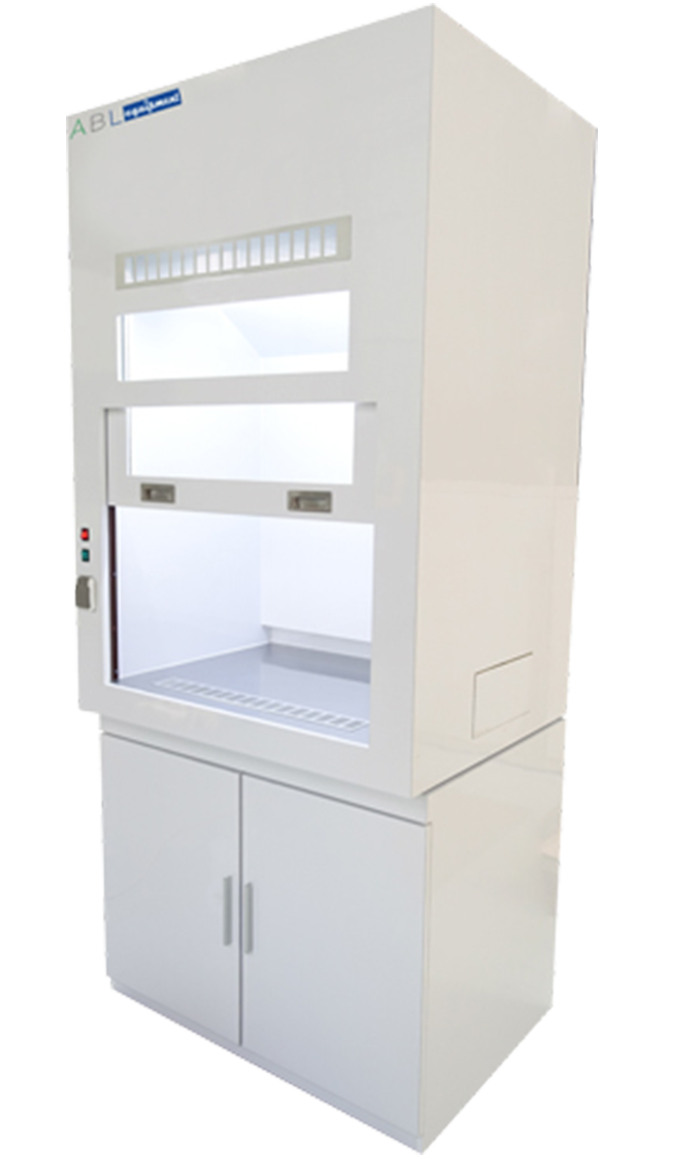

FUME HOOD AOUTOMATED ROLLING WINDOW (FH100)
Automated Rolling Window
Catalog Number : ABL-FHSAO100
Description
Fume Hood Automated Rolling Window
Designed to limit exposure to hazardous or toxic fumes, vapors or dusts, ABL Fume Hoods, gives added user protection from inhalin toxic gases. with available sizes from compact, at 90mm in length, to the ultimate working space of 120mm in length, users have the option to customize thier Fume Hoode, through added options from premium control panel to cabinet layout. ABL Fume Hoods provide a variety of plug-ins from gas, water, electricity, to different size size of labolatory grade sink to accommodate the most demanding of work. ABL Fume Hoods are built with highly selective stainless steel that goes beyond the standard requirment of 304 grade, using 316 grade stainless steel for added du-rability and hardness. each ABL Fume Hood goes through stringent quality assurance lest to ensure smooth operation and have been tested for 36 hours for performance.
Wet Scrubber
Removing particles and / or gasses from the use of Biological Safety Cabinet and Fume Hoods, are essential in good desgin of ABL wet scrubber system, it operates by intoducing dirty flow of gas stream whic will then be neutralized by sprikled water through a series of highly concentrated media to eleminate elements and odor, while leaving clean air.
Material |
BBMin 18, Finishing HPL |
Outside Dimension |
1000x750x1400 mm (PxLxT) |
Work Room |
820x550x950 mm (PxLxT) |
Work Bench |
Stainless Steek SUS 316 |
Lighting |
LED 8 Watt, 220 Volt AC 800 Lumens, Temperature Coll Day light, Corner 270° |
Front Control Panel |
Switch on/off(LED Light & Blower) |
Blower |
centrifugal,Acid proof,Impellers Sirroco, 220 Volt 0,25 HP, Capacity 30m3/m, ST Press, RPM 2850, Ducthing 8 Inch |
Front Opening |
Tempered Glass , Acrylic Panel |
Catalog Number | ABL-FHSAO100 |
---|---|
Product Name | FUME HOOD AOUTOMATED ROLLING WINDOW (FH100) |
Product Detail | Automated Rolling Window |
Brand | ABL Equipment |
Material | Hardened Timber |
Color | White |
Weight (kg) | 400 Kg |
Dimension | 1000 X 750 X 2200 |
-
Certificate ISO 9001
-
Certificate ISO 13485
-
Certificate CPAKB
-
Certificate CDAKB
