ABL Equipment Furniture LAB

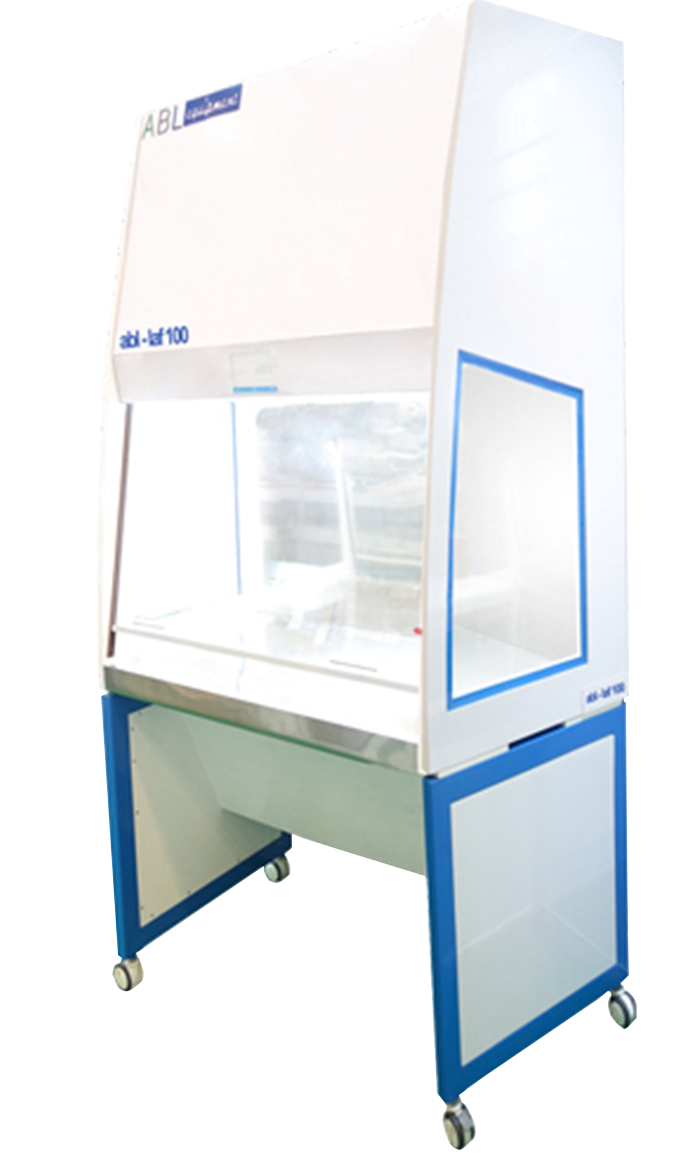

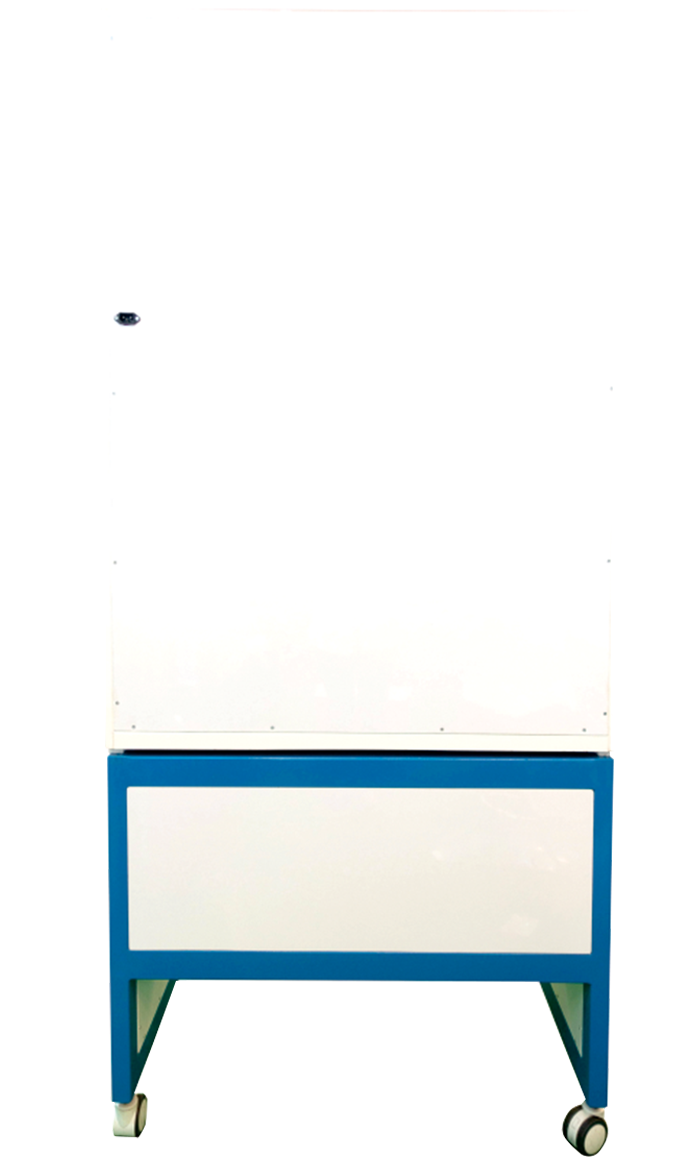

LAMINAR AIR FLOW 90

Horizontal / Vertical

Catalog Number : ABL-LAF90

Description

Laminar Air Flow

ABL Horizontal and Vertical Laminar Flow Clean Workstations use innovative design, materials and stringent manufacturing processes to ensure maximum airflow, while reducing drag. The clean workstation can be used for the preparation of tissue culture, IV solutions, injectable drugs, optics, microelectronics, or any particle sensitive materials. It is an enclosed bench designed to prevent contamination of outside particles, ideal for general lab work, especially in the medical, pharmaceutical, electronic and industial sectors, where sampels protection is needed than operator. Laminar Airflow Workstations sterilize air through filter and blow it across work surface as a particle-free air stream.

Material	BBMin 18, Finishing HPL
Outside Dimension	900x750x1400 mm (PxLxT)
Inside Dimension	845x600x1350 mm (PxLxT)
Work Room	845x580x720 mm (PxLxT)
Work Bench	Stainless Steek SUS 316
Lighting	LED 8 Watt, 220 Volt AC 800 Lumens, Temperature Coll Day light, Corner 270°
Ultra Violet Light	20 watt, 220 Volt Life 8000 hrs
Front Control Panel	Switch on/off Blower,LED Light, UV Light
Hepa Filter	Efficiency of 99,99% @0,3 um pressure Drop @0,45m/s, ≤ 105 Pa Diagonal Dimension (± 1.0 mm)
Pre Filter	0 -0,80 m/s (Dimension: 340x320 mm)
Blower	220 Volt 0.3 Amp
Sound Pressure Level	Low Noise ≤ 80dB
Power	250 VA, 220 Volt, 1 Pass
Front Opening	Tempered Glass , Acrylic Panel

Catalog Number	ABL-LAF90
Product Name	LAMINAR AIR FLOW 90
Product Detail	Horizontal / Vertical
Brand	ABL Equipment
Material	Hardened Timber
Color	White
Weight (kg)	400 Kg
Dimension	900 X 750 X 2150

Certificate ISO 9001
Certificate ISO 13485
Certificate CPAKB
Certificate CDAKB
